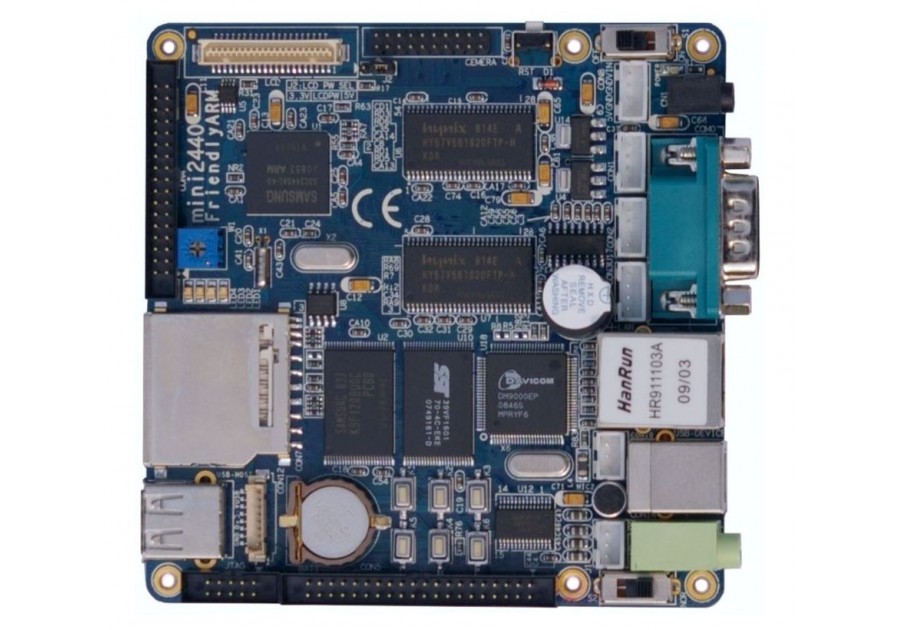

Mini2440 (256M Flash) + 3.5"LCD + Standard Accessories

Specification:        

• Dimension: 100 x 100 mm    
• CPU: 400MHz Samsung S3C2440 ARM926T (max freq. 533 MHz)
• RAM: 64 MB, 32 bit Bus
• Flash: up to 1GB NAND Flash
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
• USB: 1x USB-A Host 1.1, 1x USB-B Device 1.1
• Audio Output: 3.5 mm stereo jack
• Audio Input: Connector + Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery (CR1220)
• Beeper: PWM buzzer
• Camera: 20 pin (2.0 mm) Camera interface
• LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
• User Inputs: 6x push buttons and 1x A/D pot
• User Outputs: 4x LEDs
• Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
• Debug: 10 pin JTAG (2.0 mm)
• Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
• Power Consumption: Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A
• OS Support
  • Windows CE 5 and 6
  • Linux
