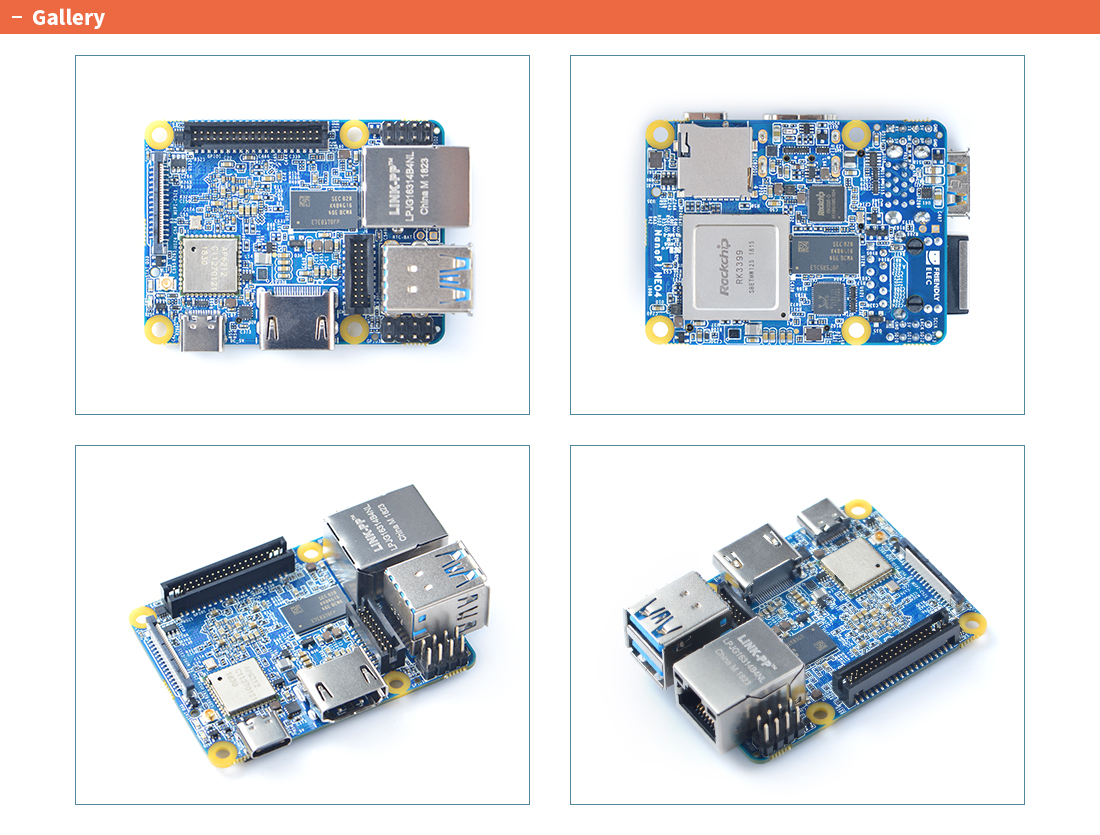

NanoPi NEO4
- $50.00
- Availability: Discontinued
- Brand: FriendlyElec
- Product Code: NanoPi NEO4
Available Options
| CPU | Model: Rockchip RK3399 Number of Cores: big.LITTLE, 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz) |
| GPU | Mali-T864 GPU，supports OpenGL® ES1.1/2.0/3.0/3.1, OpenCL™, DX11, and AFBC |
| VPU | 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc |
| Memory | 1GB DDR3-1866 |
| Storage | eMMC: no Onboard eMMC, but has a eMMC socket MicroSD Slot: MicroSD*1 for external storage up to 128GB |
| Connectivity | Ethernet: Native Gbps Ethernet WiFi: 802.11 b/g/n, Bluetooth 4.0 combo module Antenna x1: IPX Connector |
| Audio | Audio Output: HDMI |
| Video-Input | one 4-Lane MIPI-CSI, up to 13MPix/s |
| Video Output | HDMI*1: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2 |
| USB | USB 3.0 x1: USB 3.0 Type-A ports USB Type-C x1: Supports USB2.0 OTG and Power input USB 2.0 x2: USB 2.0 Host, one is Type-A, the other is 2.54mm header |
| Pin-header | GPIO1: 40pin ,Female connector (M50-4302045) 2 X 3V I2C, 1x 3V UART/SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs PCIe x2 PWM x1, PowerKey GPIO2: 1 x 1.8V 8ch-I2S GPIO3: debug uart, 3V level, 1500000bps USB 2.0 x1 |
| LED | Power LED(Red) x1 GPIO Controlled LED(Green) x1 |
| Others | RTC Battery: 2 Pin 2.54mm pitch through-hole pad Working Temperature: -20℃ to 70℃ |
| Power | DC 5V/3A |
| OS Support | FriendlyWrt 24.10 FriendlyWrt 23.05 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Debian 10 Desktop Debian 11 Desktop Alpine-Linux |
| Kernel version | Linux-4.4-LTS U-boot-2014.10 |
| PCB | 8 Layer |
| Dimension | 60*45mm |
| Weight | 30.25g |
Optional Accessories
-
NanoPi NEO4 Heat Sink
($5.99) -
5V 4A Power Adapter
($8.99) -
German Plug Adapter
($5.99) -
USB Type-C to USB-A Male 2.0 Cable - 30cm
($2.99) -
SanDisk 16GB EDGE A1 U1 Class 10 Micro SD SDHC MicroSD Memory Card
($7.99) -
eMMC Module - 16GB eMMC Module
($12.00) -
13.2MP MIPI Camera Module
($25.00)
Related Resources
WIKI: https://wiki.friendlyelec.com/wiki/index.php/NanoPi_NEO4
| Hardware Spec | |
| CPU: | Model: Rockchip RK3399； Number of Cores: big.LITTLE, 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53； Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz) |
| GPU: | Mali-T864 GPU，supports OpenGL® ES1.1/2.0/3.0/3.1, OpenCL™, DX11, and AFBC |
| NPU | 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc |
| DDR3 RAM: | 1GB DDR3-1866 |
| Storage: | eMMC: no Onboard eMMC, but has a eMMC socket |
| USB Host: | USB 3.0 x1: USB 3.0 Type-A ports； USB Type-C x1: Supports USB2.0 OTG and Power input； USB 2.0 x2: USB 2.0 Host, one is Type-A, the other is 2.54mm header |
| WiFi: | 802.11 b/g/n, Bluetooth 4.0 combo module |
| Antenna Interface: | Antenna x1: IPX Connector |
| Audio input/output Port | Video Input: one 4-Lane MIPI-CSI, up to 13MPix/s； Video Output: HDMI*1: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2. |
| microSD Slot: | MicroSD x1 for external storage up to 128GB |
| LED: | Power LED(Red) x1 GPIO Controlled LED(Green) x1 |
| PCB Dimension: | 8 Layer；60 x 45mm |
| Power: | DC 5V/3A |
