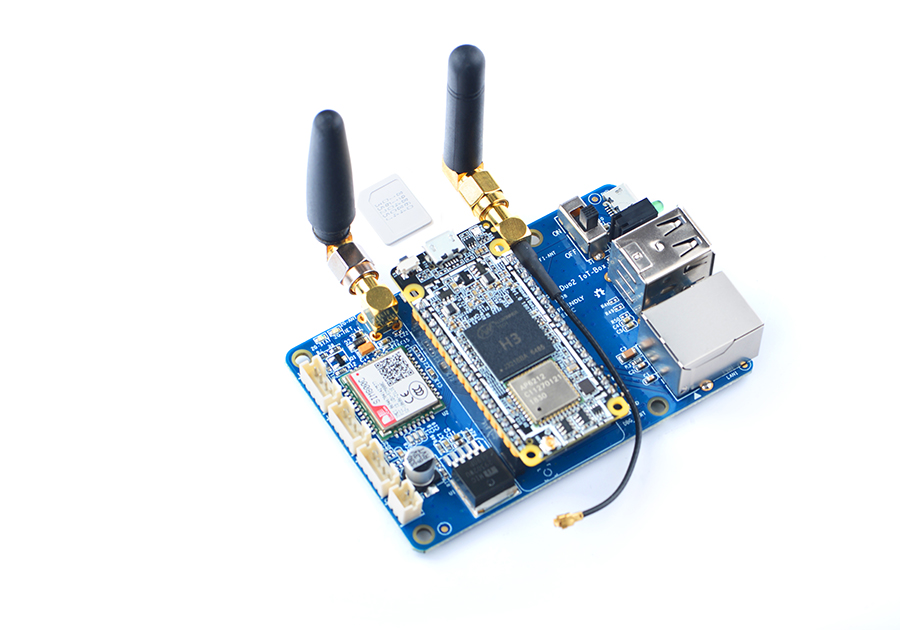

IoT-2G Application Carrier Board for NanoPi Duo2
- $12.00
Buyer responsible for payment of duty.
- Availability: Out Of Stock
- Brand: FriendlyElec
- Product Code: IoT-2G Application Carrier Board for NanoPi Duo2
| GSM/GPRS | SIM800C GSM/GPRS module GSM/GPRS 850/900/1800/1900MHz GPRS multi-slot class 12/10 GPRS mobile station class B |
| Connectivity | GSM/GPRS SMA Antenna port x1 IPX to SMA antenna converter for an WiFi antenna x1 MicroSIM Card Slot x1 USB 2.0 Host x2 10/100M Ethernet port x1 |
| Port | I2C0 Port x1: 4pin 2.0mm pitch UART1 Port x1: 4pin 2.0mm pitch Audio Port x1: 4pin 2.0mm pitch CVBS Port x1: 2pin 2.0mm pitch Serial Debug Port: 2.54mm pitch 4-pin-header |
| LED | Power LED(Red) x1 GPIO LED(Green) x1 2G-NET LED(Blue) x1 2G-STAT LED(Yellow) x1 |
| Power | MicroUSB(power only) DC 5V/2A Power ON/OFF Switch x1 |
| Dimension | 85*56mm |
| Weight | 45g |
