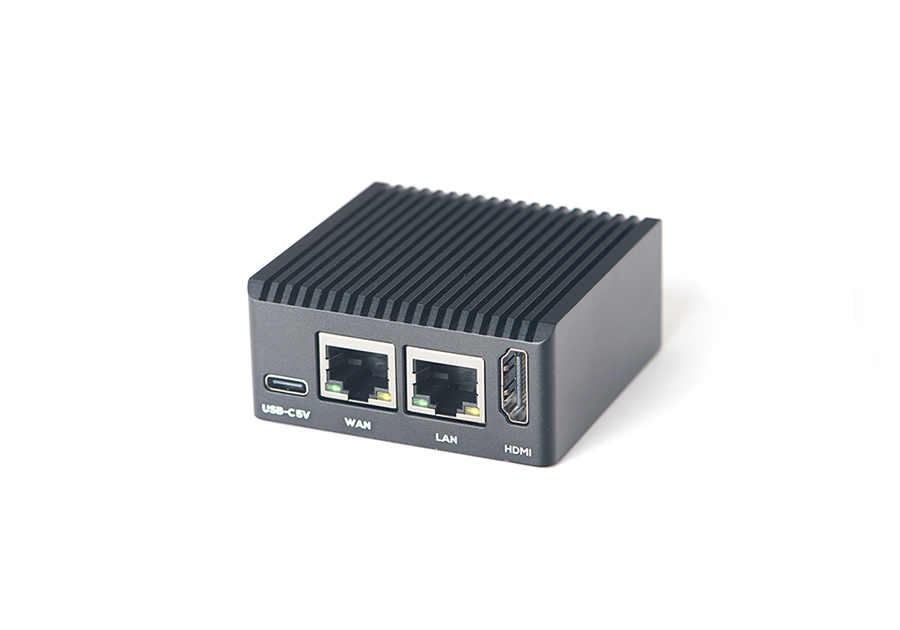

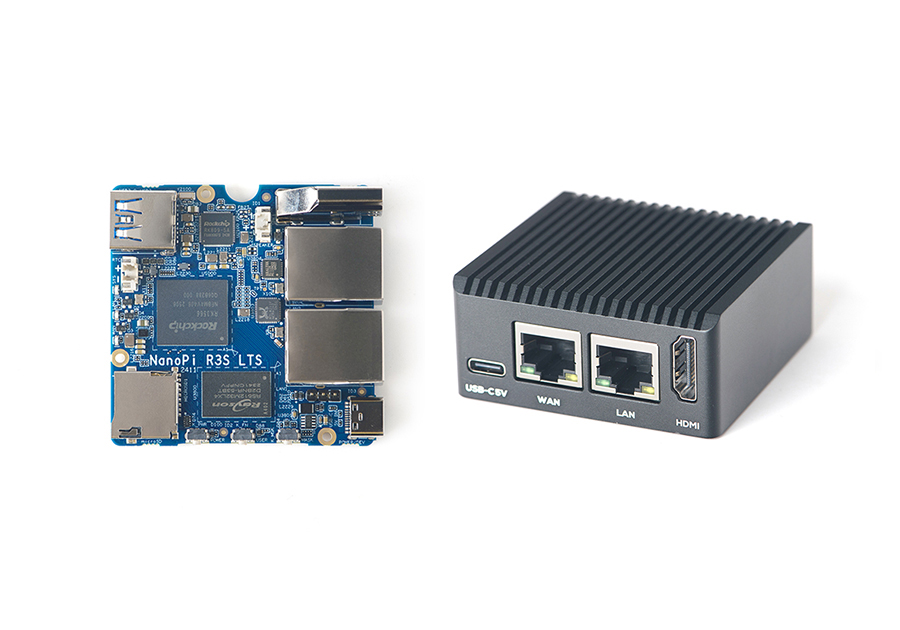

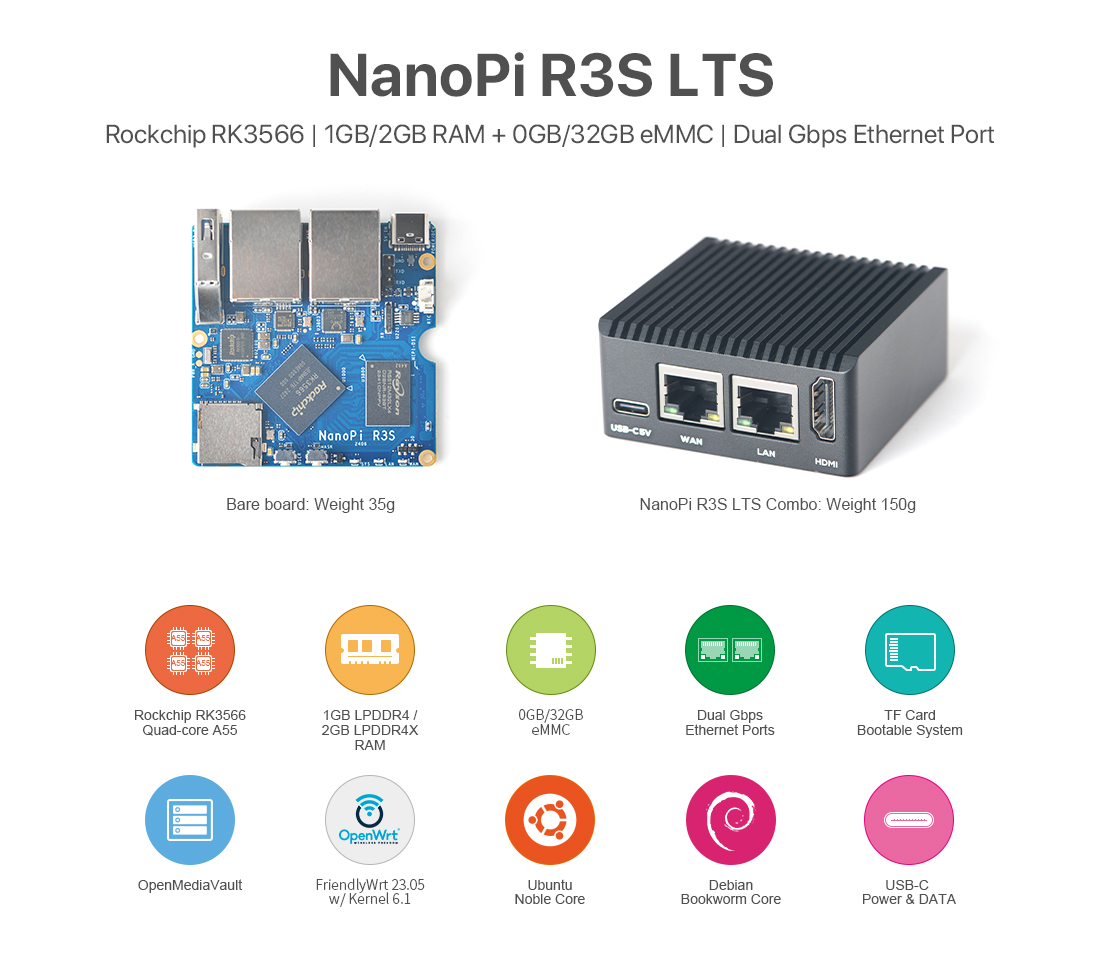

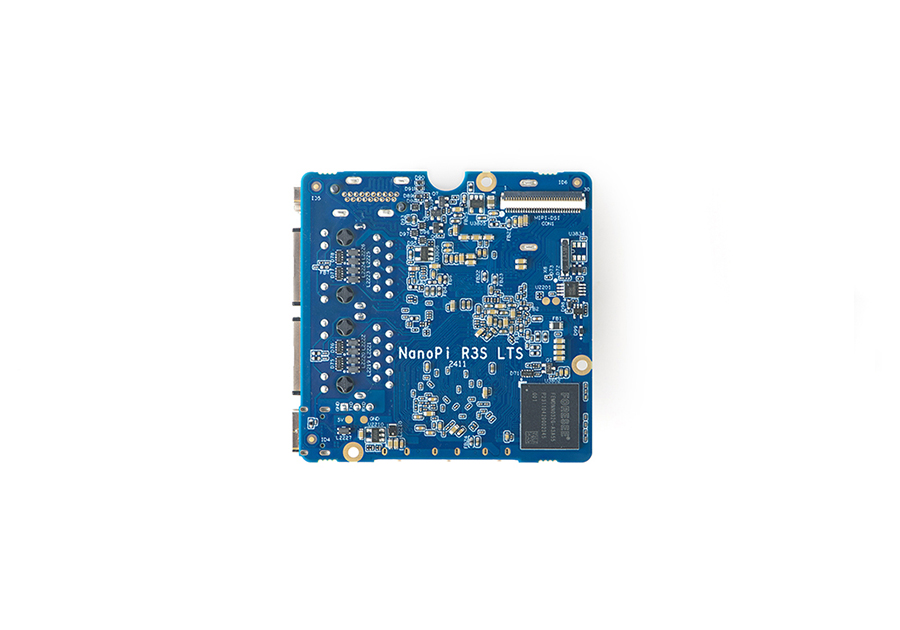

NanoPi R3S-LTS

(USD)
Buyer responsible for payment of duty.

Brand: FriendlyElec

Product Code: NanoPi R3S-LTS

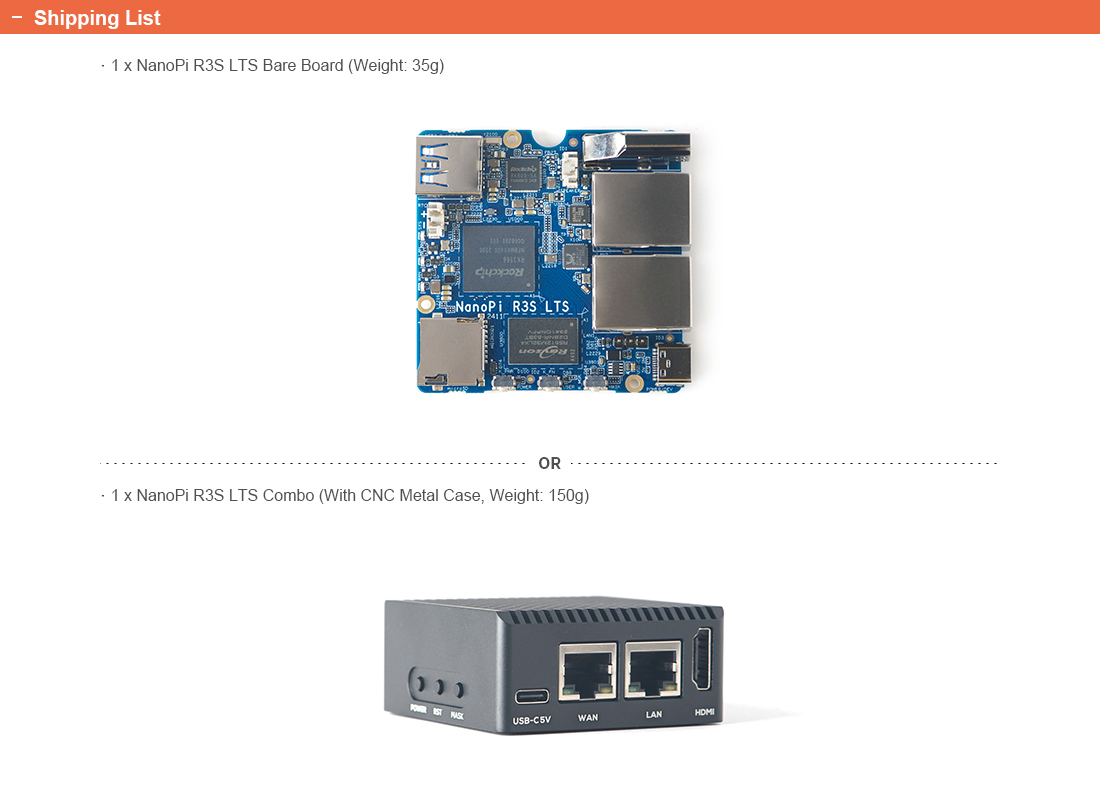

R3S Purchase Combination

1 GB RAM, no eMMC - Bare Board

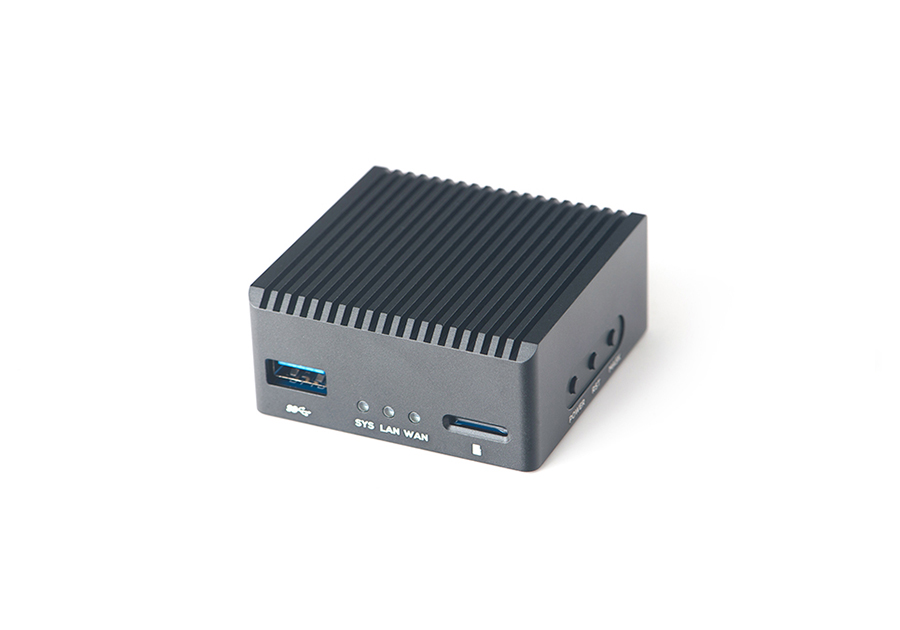

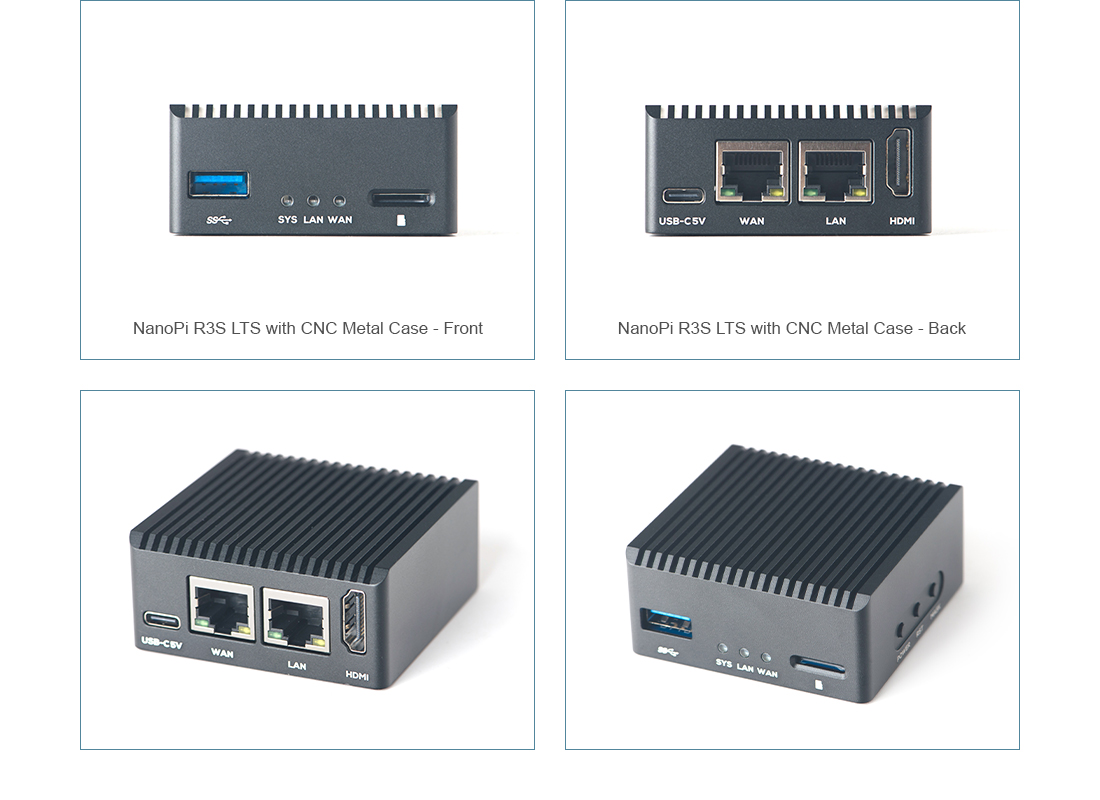

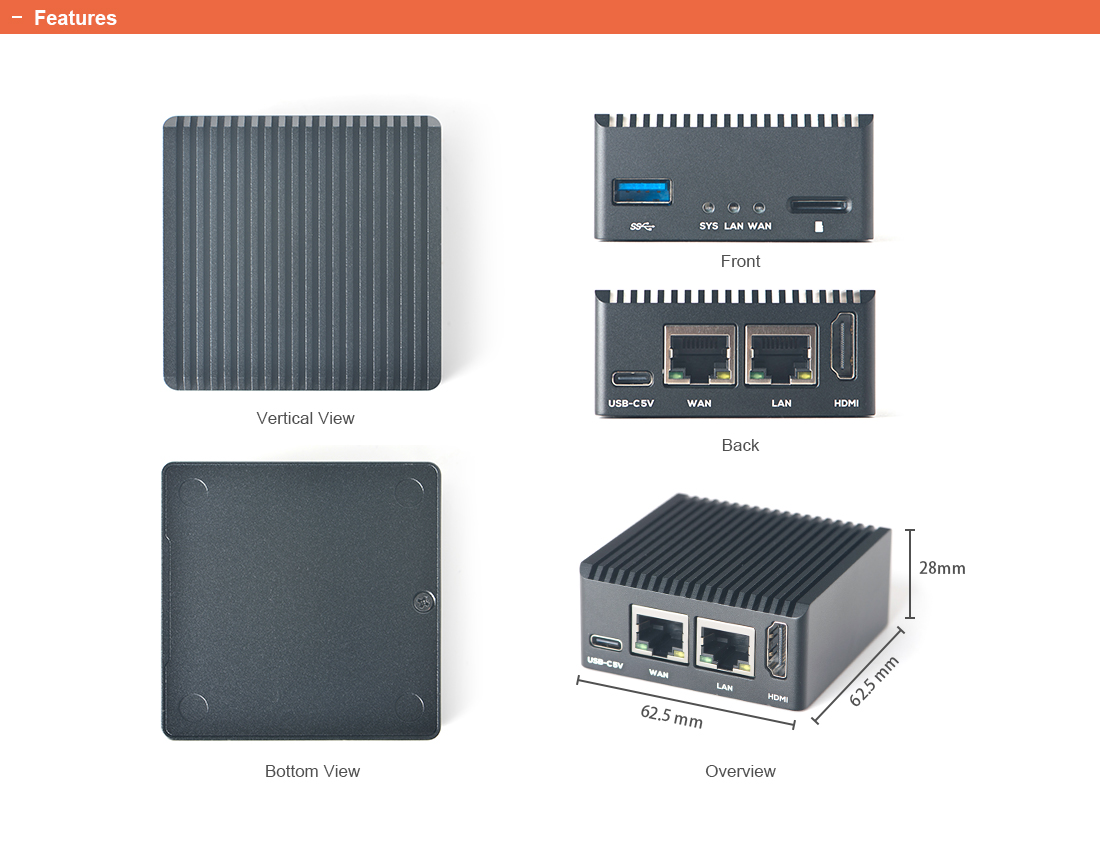

1 GB RAM, no eMMC - Combo with Metal Case (+$3.00)

1 GB RAM - 32GB eMMC - Bare Board (+$3.00)

1 GB RAM - 32GB eMMC - Combo with Metal Case (+$10.00)

2 GB RAM, no eMMC - Bare Board (+$5.00)

2 GB RAM, no eMMC - Combo with Metal Case (+$13.00)

2 GB RAM - 32GB eMMC - Bare Board (+$10.00)

2 GB RAM - 32GB eMMC - Combo with Metal Case (+$17.00)

Qty:

Related Resources

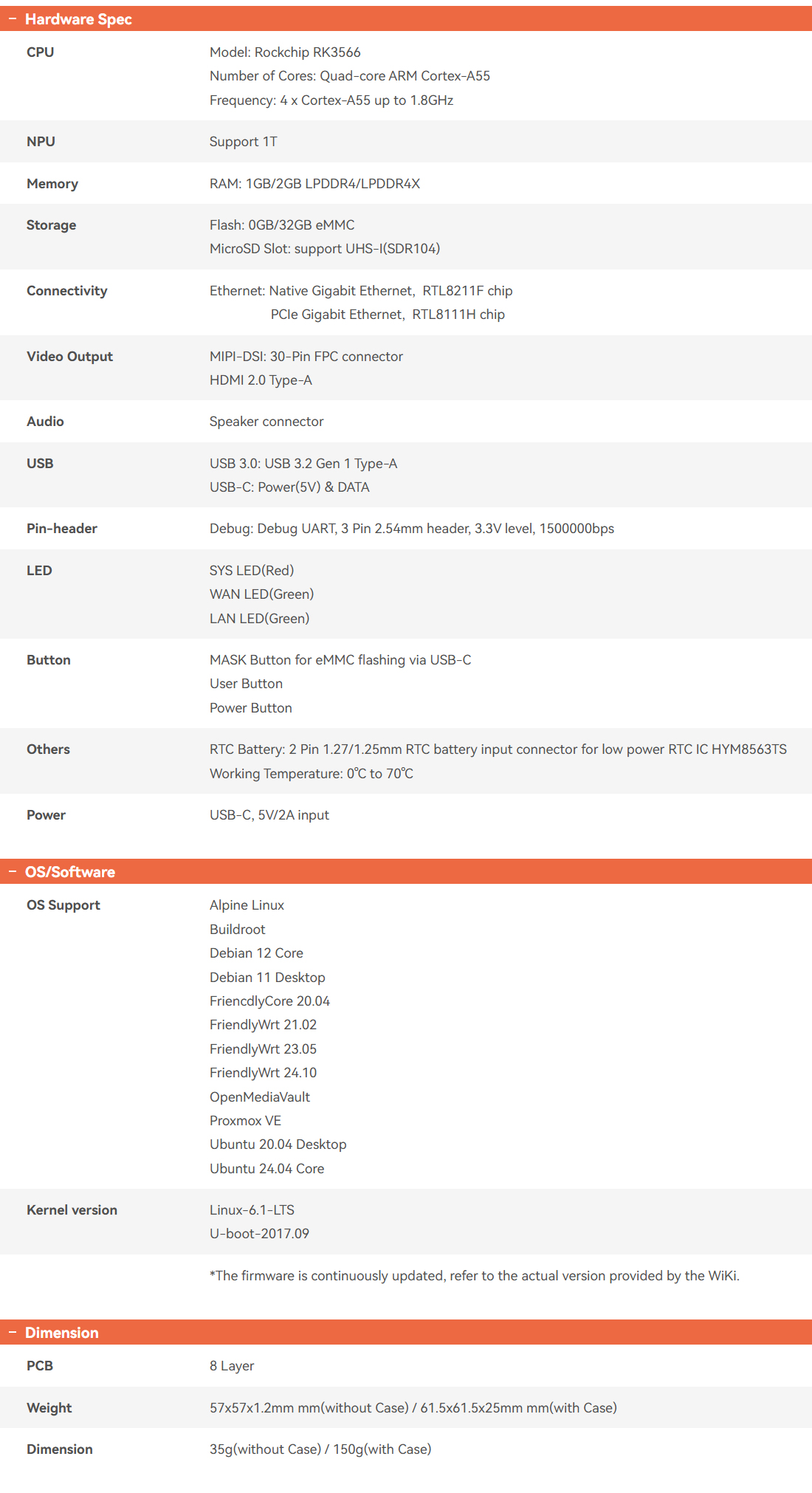

Hardware Spec

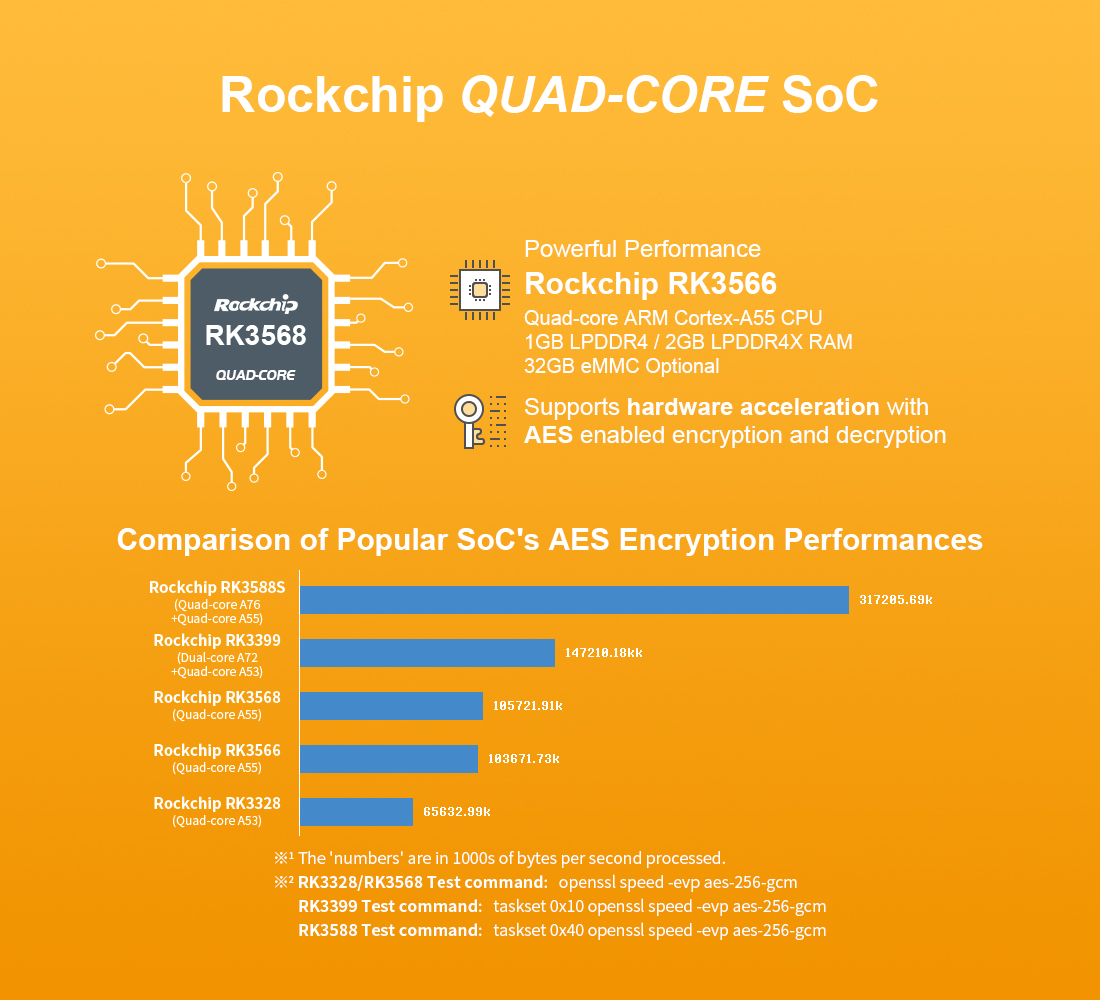

CPU:	Model: Rockchip RK3566 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4 x Cortex-A55 up to 1.8GHz
NPU	Support 1T
RAM	1GB/2GB LPDDR4/LPDDR4X

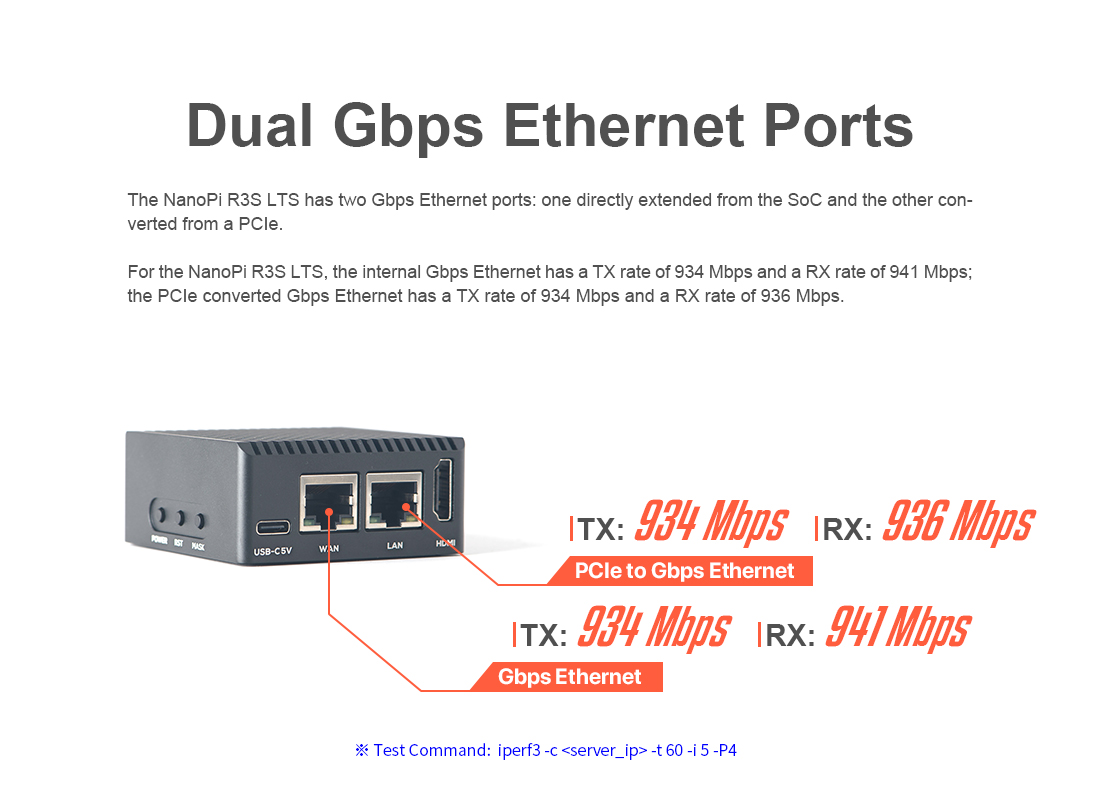

Connectivity:	Ethernet: Native Gigabit Ethernet, RTL8211F chip PCle Gigabit Ethernet, RTL8111H chip
Storage:	Flash: 0GB/32GB eMMC MicroSD Slot: support UHS-I(SDR104)
USB Host:	USB 3.0: USB 3.2 Gen 1 Type-A USB-C: Power(5V) & DATA
Audio input/output Port	Speaker connector
Debug Serial Port/UART0:	Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
Video output:	MIPI-DSl: 30-Pin FPC connector HDMI 2.0 Type-A
Button:	MASK Button for eMMC flashing via USB-C User Button Power Button
LED:	SYS LED(Red) WAN LED(Green) LAN LED(Green)
RTC:	RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Power:	USB-C, 5V/2A input
Working temperature:	0 °C to 70°c
Software Features
Kernel version	Linux-6.1-LTS U-boot-2017.09

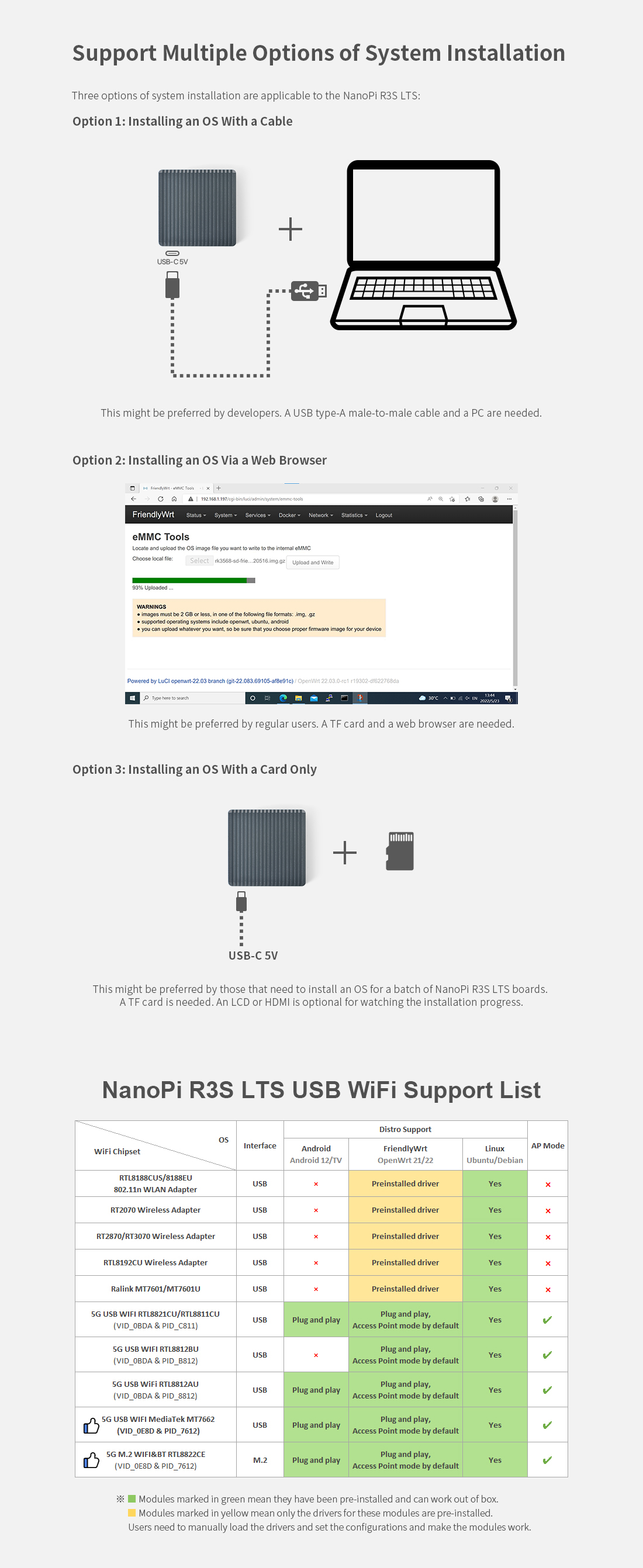

OS Support	Alpine Linux Buildroot Debian 12 Core Debian 11 Desktop FriendlyCore 20.04 Friendlywrt 21.02 FriendlyWrt 23.05 FriendlyWrt 24.10 OpenMediaVault Proxmox VE Ubuntu 20.04 Desktop Ubuntu 24.04 Core
