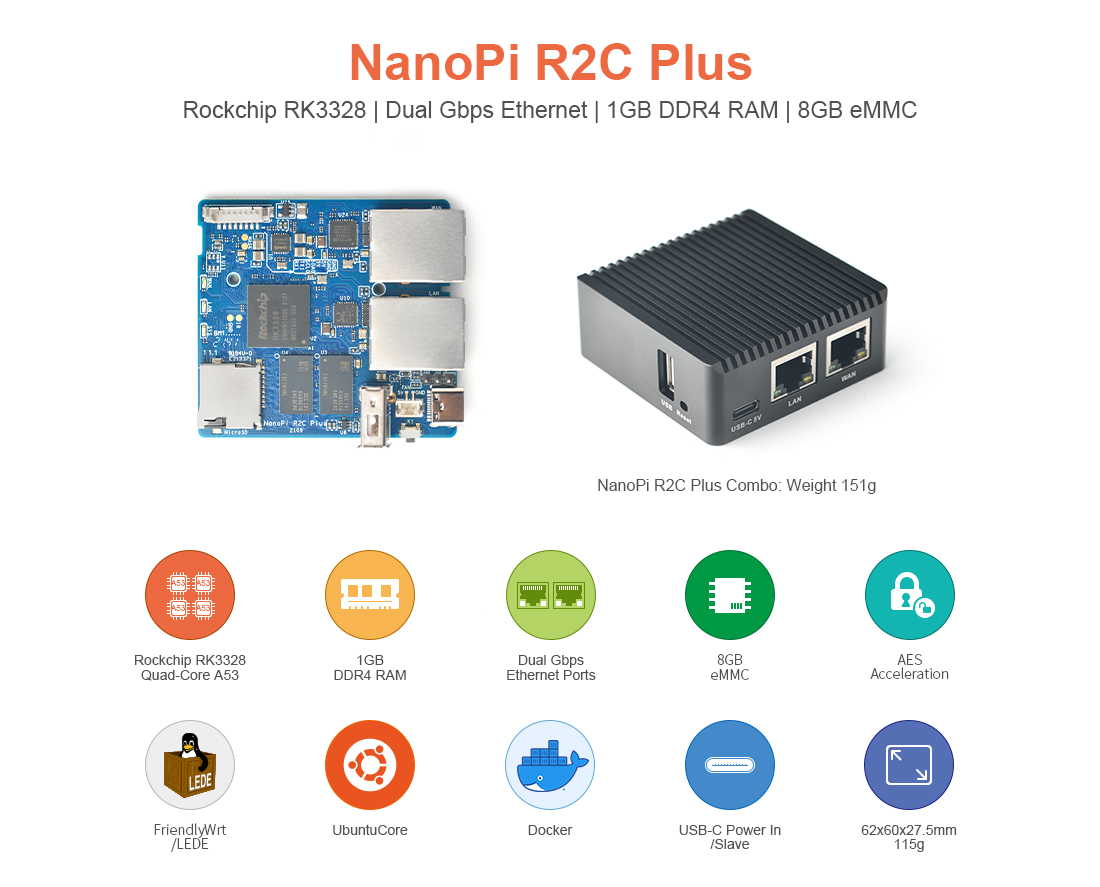

NanoPi R2C Plus
- $32.90
- Availability: In Stock
- Brand: FriendlyElec
- Product Code: R2C Plus
Available Options

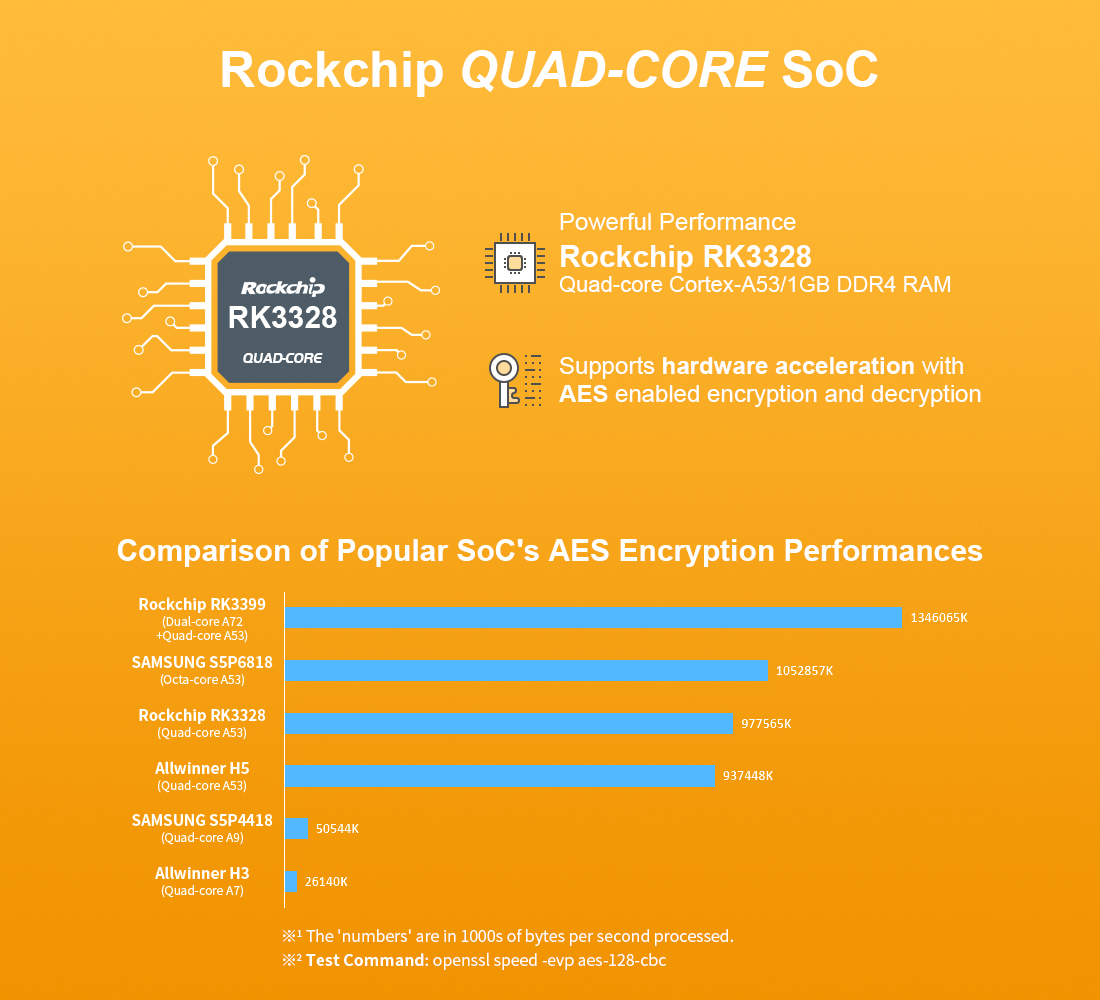

CPU | Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.4GHz |
Memory | RAM: 1GB DDR4 |
Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB Flash: 8GB eMMC 5.1 Flash |

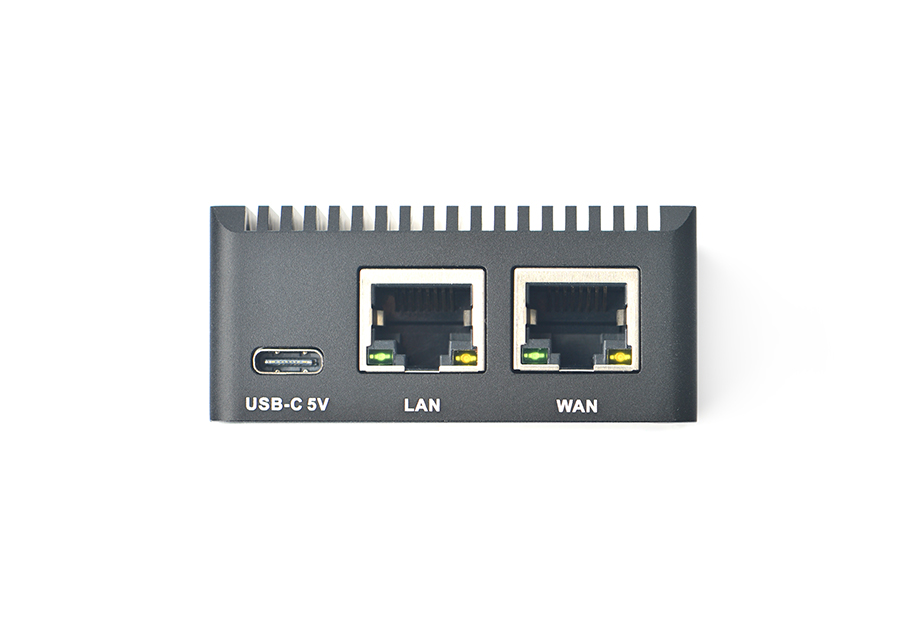

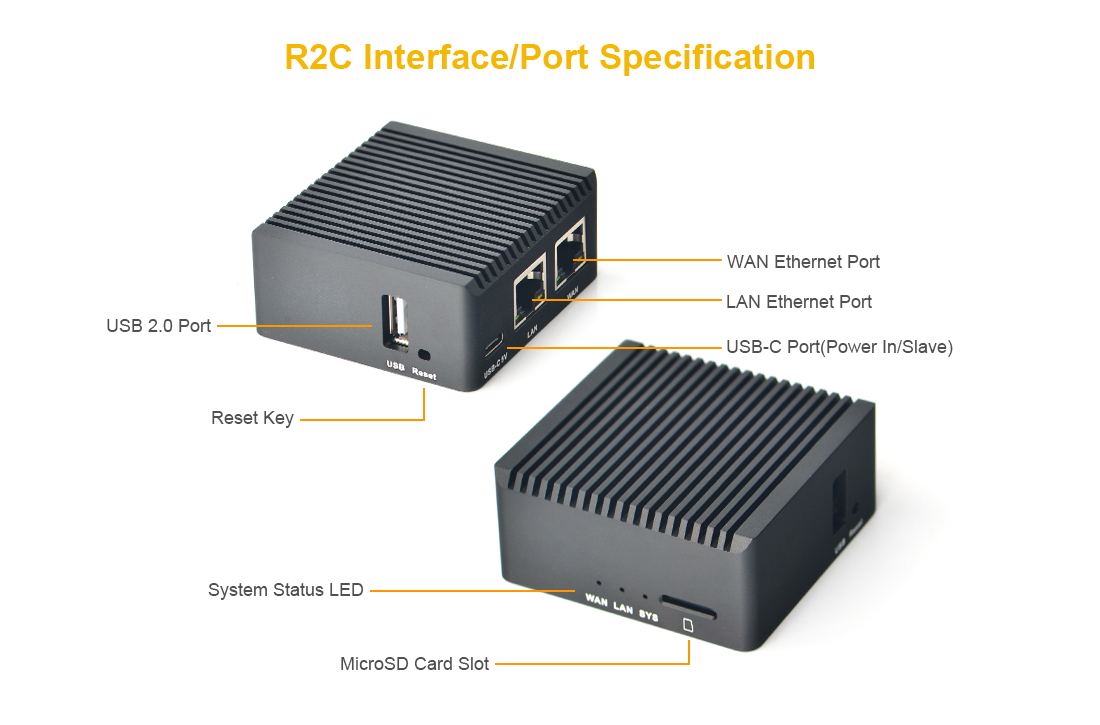

Connectivity | Ethernet: Internal Gbps Ethernet x1, YT8521S chip USB 3.0 to Gbps Ethernet x1 |
USB | USB 2.0 Host x1: USB Type A MicroUSB x1: Power input(5V/2A) and Slave |
Pin-header | Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL) |

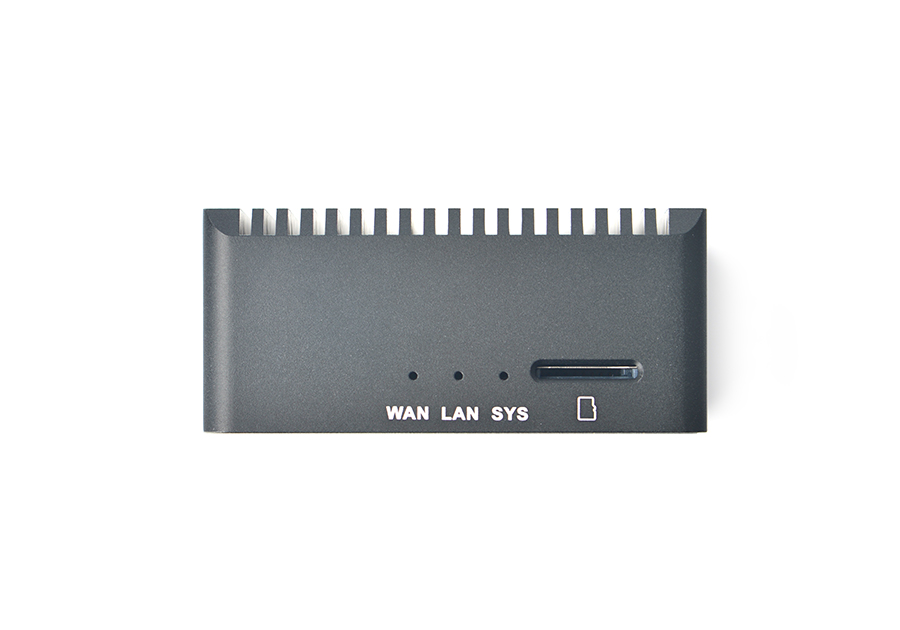

LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1 |
Button | User Key x1 |

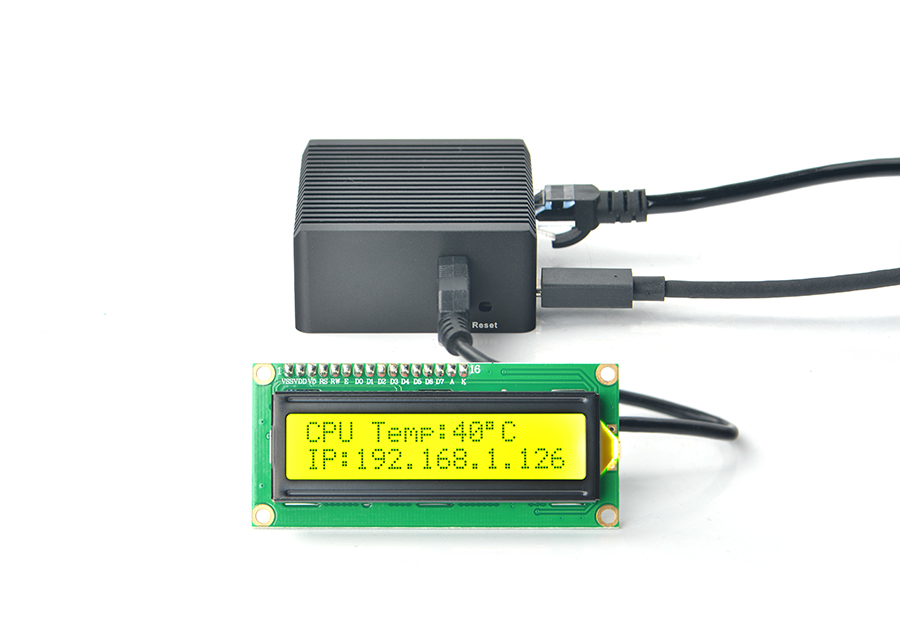

Others | 8 Pin GPIO Connector:1 x I2C,1 x UART/2 x GPIOs Fan Connector(ZH1.5-2A) x1 Working Temperature: 0℃ to 80℃ |
Power | DC 5V/2A |

OS Support | FriendlyWrt 21.02 FriendlyWrt 22.03 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot Debian 11 Core |

PCB | 6 Layer |

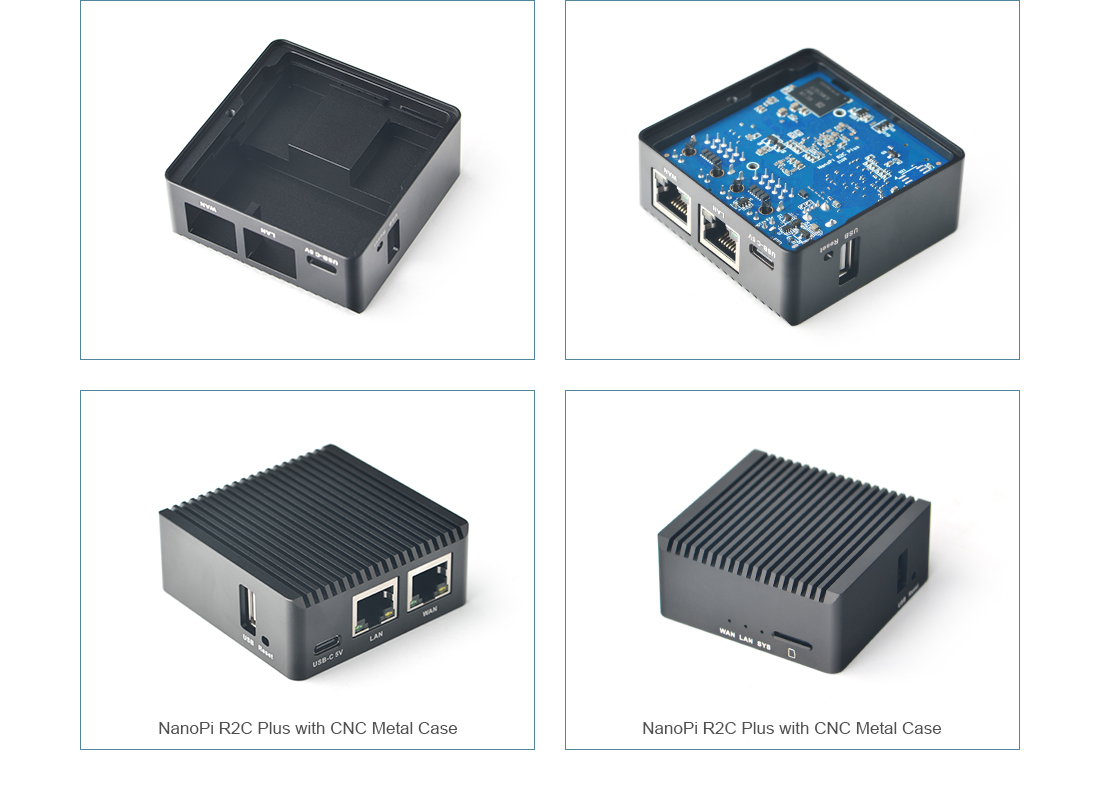

Weight | 151.4g(With Case) |

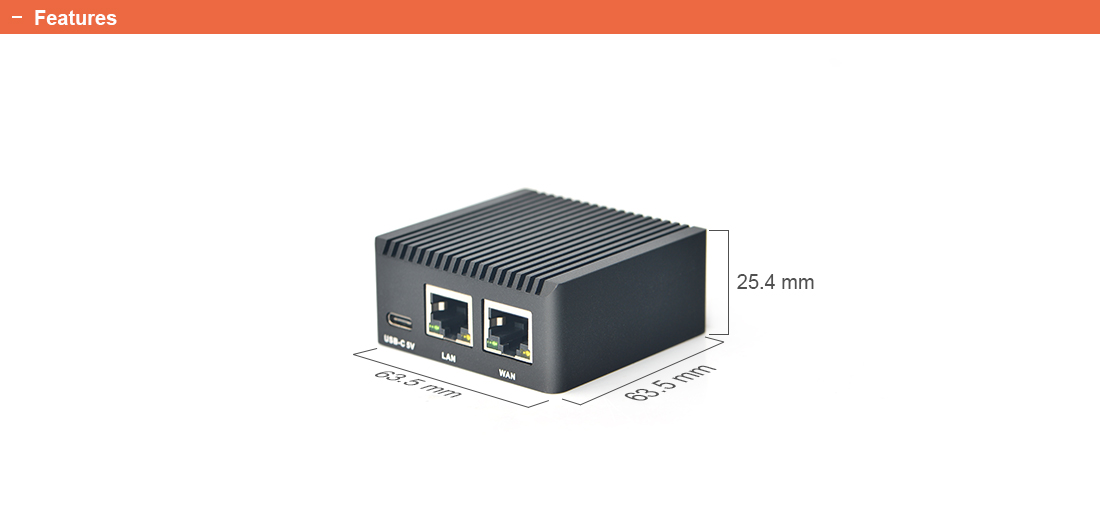

Dimension | 63.5x63.5x24.5 mm(with Case) |



Related Resources
WIKI: https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2C_Plus
Hardware Spec | |
CPU: | Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.4GHz |
DDR4 RAM: | MicroSD Slot: MicroSD x1 for external storage up to 128GB Flash: 8GB eMMC 5.1 Flash |
Network: | Ethernet: Internal Gbps Ethernet x1, YT8521S chip USB3.0 converted Gbps Ethernet x1 |
USB Host: | USB 2.0 Host x1: USB Type A MicroUSB x1: Power input(5V/2A) and Slave |
Debug Serial Port/UART0: | 8 Pin GPIO Connector:1 x I2C,1 x UART/2 x GPIOs Fan Connector(ZH1.5-2A) x1 |
microSD Slot: | 1 |
LED: | SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1 |
PCB Dimension: | 63.5x63.5x24.5 mm(with Case) |
Power: | DC 5V/2A |
Working temperature: | 0℃ to 80℃ |
Software Features | |
OS Support | FriendlyWrt 21.02 FriendlyWrt 22.03 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot Debian 11 Core |
