NanoPi R5S-LTS
- $65.00
- Availability: In Stock
- Brand: FriendlyElec
- Product Code: R5S-LTS
Available Options
| CPU | Model: Rockchip RK3568B2 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4 x Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile |
| VPU | 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder |
| NPU | Support 0.8T |
| Memory | RAM: 2GB/4GB LPDDR4X |
| Storage | MicroSD Slot: 1 x MicroSD, support UHS-I, for external storage up to 128GB Flash: 8GB/32GB eMMC 5.1 Flash PCIe: M.2 M-Key, 1 x PCIe2.0, support NVME, PCIe WiFi etc Onboard M3 PCB nut for mounting M.2 2280 module |
| Connectivity | Ethernet: 1 x Native Gigabit Ethernet, RTL8211F-CG chip 2 x PCIe 2.5G Ethernet Ethernet, RTL8125BG chip |
| Video Output | HDMI: support HDMI1.4 and HDMI2.0 operation support up to 10 bits Deep Color modes support up to 1080p@120Hz and 4096x2304@60Hz support 3-D video formats |
| USB | 2 x USB 3.0 Host: USB Type A 1 x USB 2.0 Host: 2.54mm 4pin-header 1 x Type-C: Power Input Only |
| Pin-header | GPIO: 12-pin 0.5mm FPC connector up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs SD/MMC/SDIO/I2S: 2x8-pin 1.27mm connector Compatible with SDIO3.0 protocol Compatible with SD3.0, MMC ver4.51 4bits data bus widths 1x I2S with 2x SDO and 3x SDI Debug: 1 x Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps |
| LED | 1 x SYS LED(Red) 1 x WAN LED(Green) 1 x LAN1 LED(Green) 1 x LAN2 LED(Green) |
| Button | 1 x MASK Button for eMMC update 1 x Reset Button |
| Others | IR receiver: Onboard IR receiver, Acceptes 38KHz carrier frequency RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS 1 x Fan Connector(ZH1.5-2A), 5V Working Temperature: 0℃ to 70℃ |
| Power | USB-C, support PD, 5V/9V/12V input |
| OS Support | FriendlyWrt 21.02 FriendlyWrt 23.05 OpenMediaVault Android 12 Tablet Android 12 TV FriendlyCore Lite 20.04 Debian 10 Desktop Debian 11 Desktop Buildroot |
| Kernel version | Linux-6.1-LTS / Linux-5.10-LTS U-boot-2017.09 |
| PCB | 8 Layer |

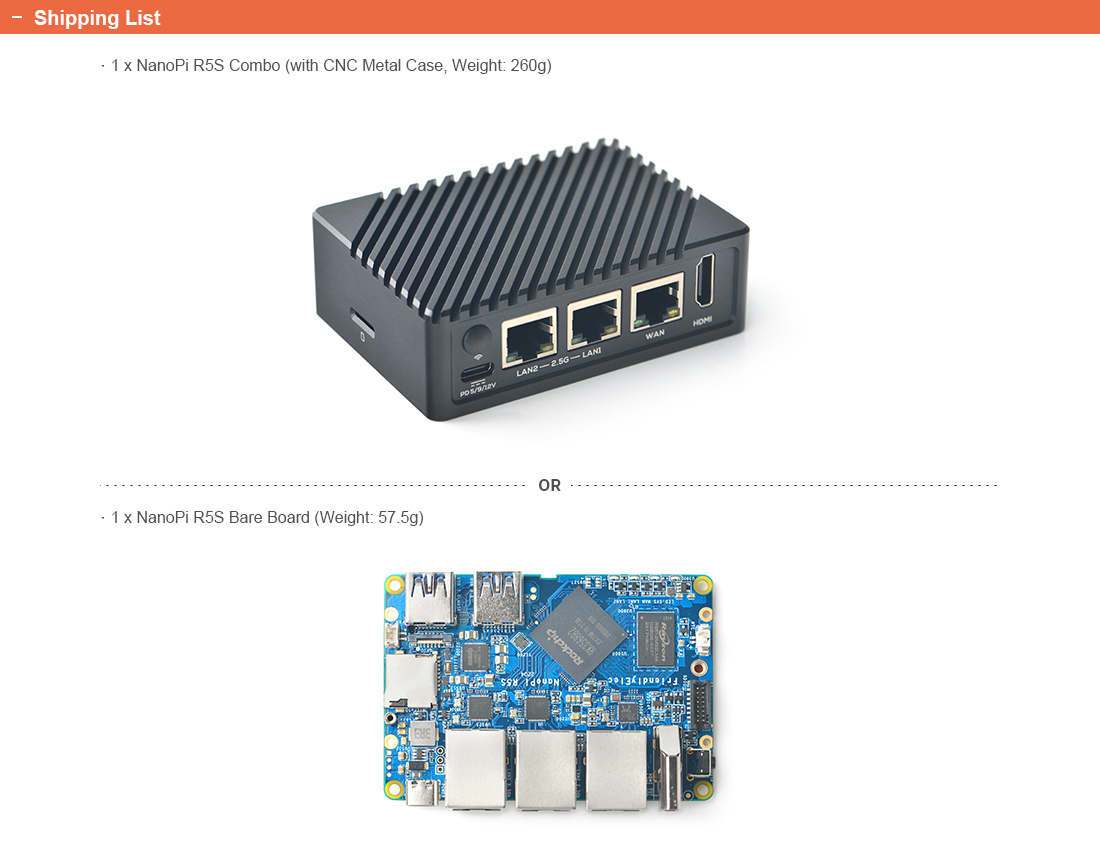

| Dimension | 62x90x1.6mm (without Case) / 68x94.5x30mm (with Case) |
| Weight | 57.5g（without Case) / 263.5g（with Case) |
Related Resources
WIKI: https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5S

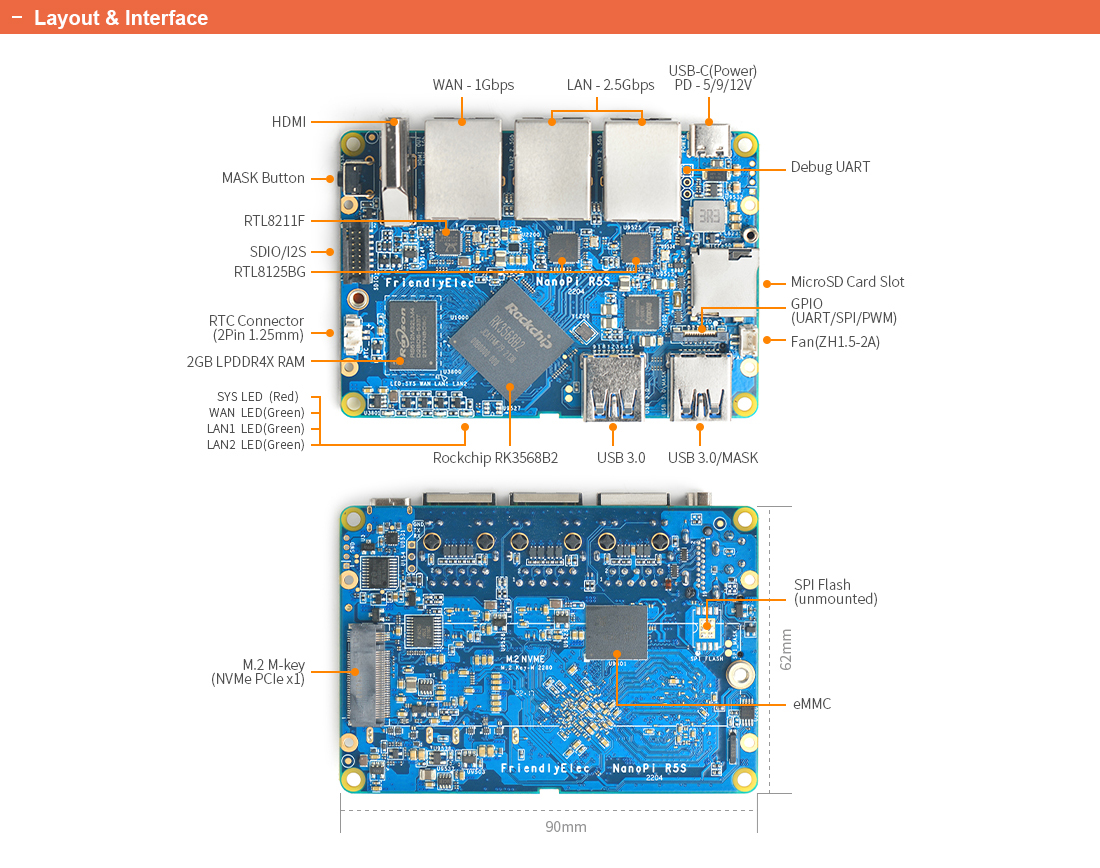

| Hardware Spec | |
| SoC | Rockchip RK3568B2 |
| CPU: | Quad-core ARM Cortex-A55 CPU, up to 2.0GHz |
| GPU: | Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile |
| NPU | Support 0.8T |
| RAM | 2GB/4GB LPDDR4X |
| Connectivity: | one 5V Fan connector |
| Storage: | 8GB/32GB eMMC |
| Network: | one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet |
| PCIe | M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc |
| USB Host: | 2 USB 3.0 Type-A ports |
| Debug Serial Port/UART0: | one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps |
| microSD Slot: | support UHS-I |
| HDMI: | support HDMI1.4 and HDMI2.0 operation support up to 10 bits Deep Color modes support up to 1080p@120Hz and 4096x2304@60Hz support 3-D video formats |
| SDIO/MMC | 2x8-pin 1.27mm connector Compatible with SDIO3.0 protocol Compatible with SD3.0, MMC ver4.51 4bits data bus widths 1x I2S with 2x SDO and 3x SDI |
| GPIO: | 12-pin 0.5mm FPC connector up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs |
| Button: | MASK button for eMMC update |
| LED: | 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2) |
| RTC: | 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS |
| PCB Dimension: | 8 Layer, 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case) |
| Power: | USB-C, support PD, 5V/9V/12V input |
| Working temperature: | 0℃ to 70℃ |
| Software Features | |
| Kernel version | Linux-6.1-LTS / Linux-5.10-LTS U-boot-2017.09 |
| OS Support | FriendlyWrt 21.02 FriendlyWrt 22.03 Android 12 Tablet Android 12 TV FriendlyCore Lite 20.04 Debian 10 Desktop Debian 11 Desktop Buildroot Linux-5.10-LTS U-boot-2017.09 |
